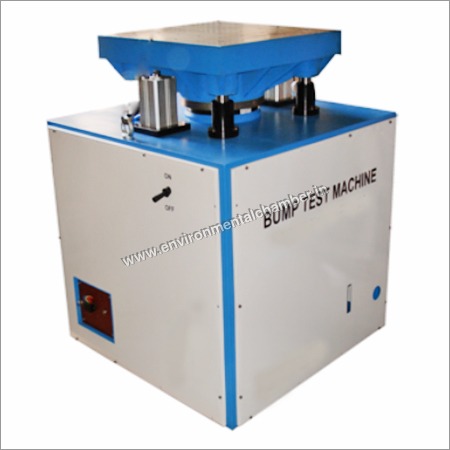

Bump Testing Machine

Bump Testing Machine
Bump Testing Machine
Product Code : BT01Bump Testing Mac
Brand Name : PRIME ENVIROTECH
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
Product Description
Bump Testing Machine is expected to recreate the impacts of tedious stuns liable to be experienced by parts when they are transported in a vehicle starting with one place then onto the next spot or introduced for its application on moving vehicle or stage. The tests can be performed as per overall models, for example, IS, BS, MIL, DIN, EN, ISO, IEC, DEF and ASTM.

Knock Test Machine is Free Fall Type and has a substantial steel structure which serves the capacity of response mass moreover. The machine is bolstered on air springs and/or substantial obligation stunners to confine the vibration to be exchanged to the ground therefore wipes out the prerequisite of uncommon establishment and can be introduced on any standard mechanical floor.

Key Features:

  • Free fall/ Pneumatic type
  • Sturdy steel structure
  • Vertical axis testing
  • Adjustable drop height

Technical Specification Free Fall Type (Pneumatic * Type)
PEBM-04 PEBM-06 PEBM-08 PEBM-10
Platform Size (mm) : 400 x 400 600 x 600 800 x 800 1000 x 1000
Payload Capacity (Kg) : 150 250 500 1000
Pulse Acceleration (g) : 2-50 (300*) 2-50 (300*) 2-50 (300*) 2-50 (300*)
Pulse Duration (mS) : 3-18 3-18 3-18) 3-18
Pulse Shape : Half-Sine Half-Sine Half-Sine Half-Sine
Bump Rate (Bumps/sec) : 1-3 1-3 1-3 1-3
Drop Height (mm) : 50 (300*) 50 (300*) 50 (300*) 50 (300*)
Machine Weight (Kg) : 1800 2300 2800 3200
Machine Dimension (mm) : 1200x1200x1000 1500x1500x1000 1500x1500x1000 1600x1600x1000
Utilities to be provided : Dry filter air 6-8 bar, Power supply 415VACĀ±10%, 3-phase, 50/60 Hz
Pneumatic Internal Load Support : Mains Input Over & Under Voltage, Phase fail, Operator safety during pad changes




Trade Information
  • Payment Terms
  • Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque
  • Delivery Time
  • Months
  • Sample Policy
  • If order is confirmed we will reimburse the sample cost
  • Main Export Market(s)
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • Certifications
  • ISO, CE
